3 Circuit Solution HD (3CS-HD) for VStrom

This VStrom version of the 3CS-HD comes with my VStrom Rear Brakelight Connector Relay Switching Adapter, no need to tap any wires on the bike.

This Kit is like a small fuse panel that doesn’t take up much space. I gives you three fused circuits and the components just tuck into unused spaces around the battery.

Headlight Relay Kits can be ordered with a male 2P250-TL-CNA connector factory crimped onto it’s main leads. This will allow you to plug these Kits into the 3 Circuit Solution HD.

You can install the male 2P250-TL-CNA connector halves onto whatever circuit wires you add.

I have chosen this type of connector because it has large enough terminals to carry a 20A current, and its terminals are easy to solder for the DIYer.

Installation instructions and photos look here

(PDF here)

Switched circuits are turned off when the bike is shut down. An unswitched circuit is always hot so it can also be used for battery charging.

3cs-1fu-vstrom

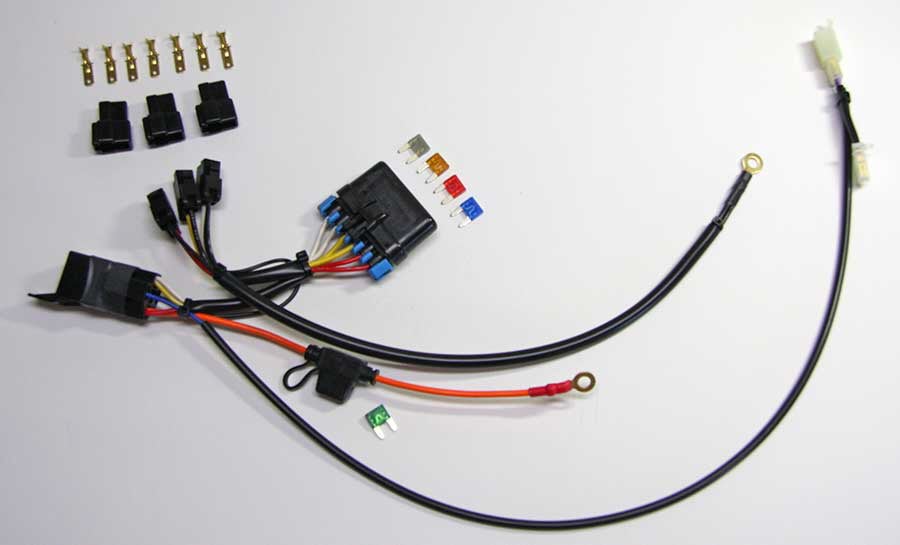

3 Circuit Solution HD for VStrom - All Fuses Switched  $59.95

Connection Option

Quantity:

3 Circuit Solution HD for VStrom - One Fuse Unswitched  $59.95

Connection Option

Quantity:

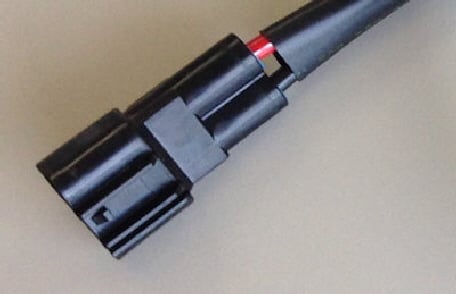

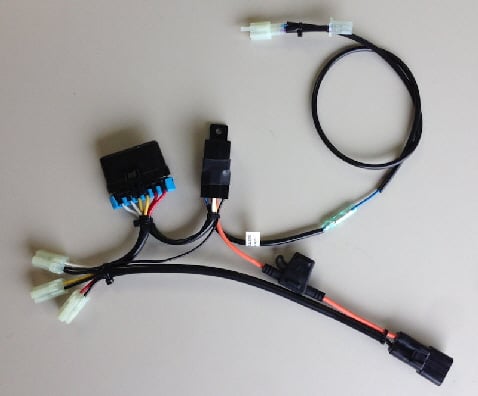

NEW - now with a Choice of direct Battery Connection as shown above, or a Powerlink Connection with a 2P heavy duty sealed male connector to plug into the Powerlink Battery Leads. This option allows you to use the Powerlink jumpstart system or add another high power circuit to the bike for high power horns etc.

Powerlink Kit Connector Option

PL-kit connector
3cs-hd-vs

Powerlink Battery Leads for VStrom

Battery lead lengths for VStrom are both 12 inches for VStrom, this pic only for illustration of the unit.

12” (31cm) $16.95

Quantity:

plbl6-p6


3CS HD Splitters - NOTE: all CS Splitters are now a more compact 20 cm (8 in)

These splitters allow you to use an output for 2 circuits which will share the same fuse.

Made using high temp 18 AWG wire and high temp sheathing. Each side of the splitter is good up to 10A, total of 15A for the two sides.

Below are shown all the possible choices you can get, you can choose both outputs.

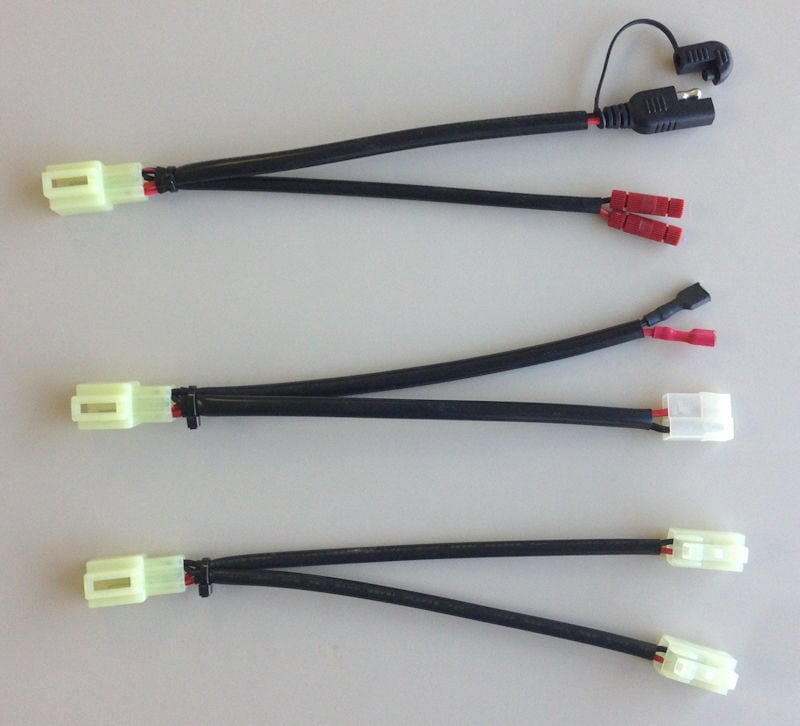

A set of 1824 Posi-Locks and an SAE plug with cap shown here.

One T-Connector for Powerlet type sockets, and one set of insulated push on 1/4” females - use to connect one 3CS output to two different sockets.

Two 3CS-HD outputs - use to split one 3CS output to two.

3CS HD Splitter $19.95

Option 1
Option 2
Quantity:

3cs-hd-splitters


3CS HD Leads

3CS-HD Extension Leads

These leads are an extension for the 3CS-HD outputs. Available in 3 lengths and made from the highest quality components. Made with high temp 16 AWG wire and high temp sheathing.

3CS-HD Extension Leads 80 cm (32”) $12.95

Quantity:

3CS-HD Extension Leads 120 cm (48”) $14.95

Quantity:

3CS-HD Extension Leads 160 cm (64”) $16.95

Quantity:

3CS-HD Leads with SAE Plug

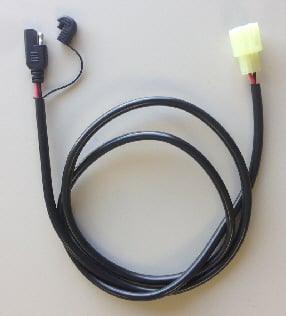

These leads are a complete solution to add an SAE plug to your 3CS-HD. Available in 3 lengths and made from the highest quality components.

2 Prong SAE Plug for battery chargers, etc., WITH 16 AWG wire. (NOW WITH SAE CAP)

3CS-HD Leads to SAE w/cap 80 cm (32”) $12.95

Quantity:

3CS-HD Leads to SAE w/cap 120 cm (48”) $14.95

Quantity:

3CS-HD Leads to SAE w/cap 160 cm (64”) $16.95

Quantity:

3cs-hd-extension
3cs-hd-lead-sae


4 Circuit Solution Sealed (4CS) for VStrom

This VStrom version of my 4CS-Sealed comes with my VStrom Rear Brakelight Connector Relay Switching Adapter, no need to tap any wires on the bike.

This Kit is like a small fuse panel that doesn’t take up much space. These Kits gives you 4 fused circuits, 3 switched and 1 unswitched. The components just tuck into unused spaces around the battery. These Kits can use modular sealed components like leads, splitters and more, see here.

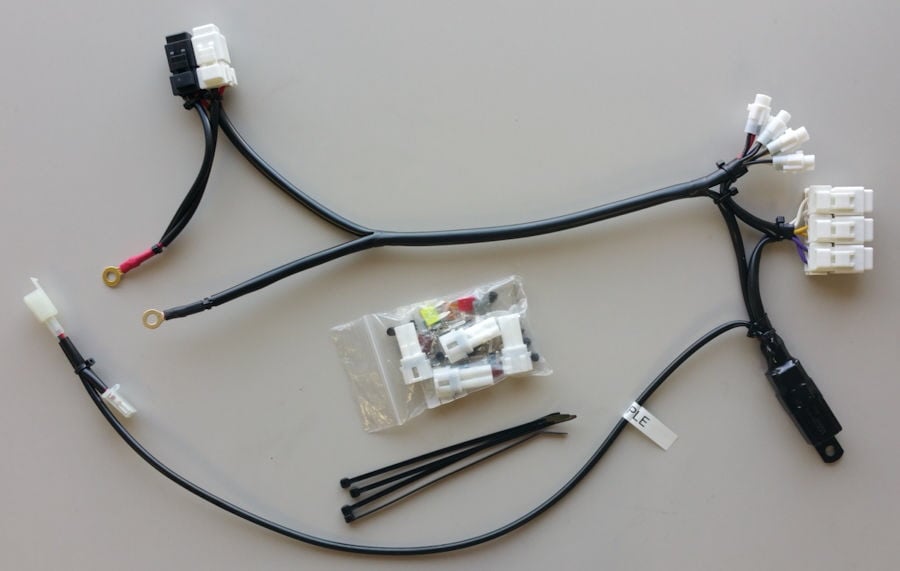

4 Circuit Solution Sealed for VStrom - with Battery Connection

4cs-vstrom

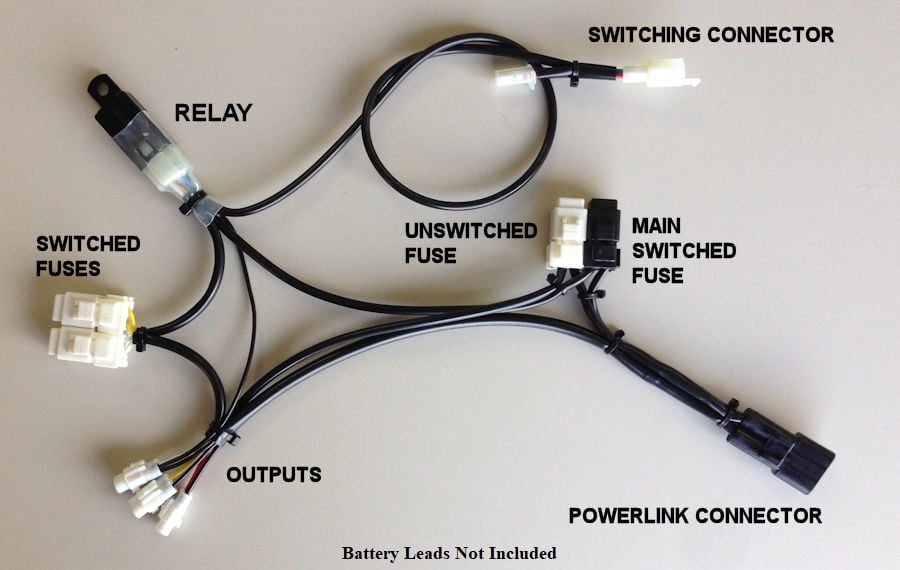

4 Circuit Solution Sealed for VStrom - with Powerlink Connection (new pic coming)

3CS-S-VS-1FU-PL

4 Circuit Solution Sealed for VStrom $69.95

Connection Option

Quantity:

The Powerlink Connection Option - mates up with our Powerlink Battery Leads to give you all the options of the Powerlink System. See our Powerlink Page for a full explanation. This option allows you to use the Powerlink jumpstart system or add another high power circuit to the bike for high power horns etc.

Powerlink Battery Leads for VStrom

Battery lead lengths for VStrom are both 12 inches for VStrom, this pic only for illustration of the unit.

12” (31cm) $16.95

Quantity:

plbl6-p6


Extra Connectors for CS Kits:

Male connectors are included with each CS kit to install on your accessory’s wires, order more below to have spares, make up your own extensions and splitters, etc.

2 Position .090 Waterproof MT Connector.

Fits wires from .5mm - 1.25mm (22 - 16 AWG).

Small size tough plastic housing with inner seal. Seals on each wire.

Click below to buy:

2P090WP-MT Connector Set  $3.95 ea

Quantity:

2p090wp-mt-new

Male Half $2.49 ea

Quantity:

Female Half $1.95 ea

Quantity:


Crimper for sealed connector terminals:

The Hozan P-706 does a pro job on these types, go here to buy. This is a great tool for a home shop, most connectors on modern bikes are this type.

You don’t need a crimper to install these. You can pinch and solder if you know how to solder. I have a page about crimping and soldering here.




CS Sealed  Leads and Extensions

Various pre-finished leads of the highest quality are available for running your circuit wires from the CS Kit under the seat to up front to power a socket, SAE, aux lights, or other devices. Leads are available for a variety of power socket connections to plug in directly. Extensions can be used where you install the male connectors that come with the CS Kit on the wires of your device (like an automotive socket with pigtails), everything then plugs together. Wires, connectors, and sheathing are high temp, highest quality, Japan made by Eastern Beaver.



CS Extensions

- pre-made solutions to connect from the CS Kits to your accessory.

- male connector on one end and a female on the other end, male plugs into a CS Kit output connector - then you can use one of the included (comes with every CS Kit) male connectors on your accessory wires to complete the circuit - give you a modular way to connect your circuits

3cs-s-extensions

CS Kit Extensions 80 cm (32”) $12.95

Quantity:

CS Kit Extensions 120 cm (48”) $14.95

Quantity:

CS Kit Extensions 160 cm (64”) $16.95

Quantity:


CS Kit Leads - these leads have specific terminating connectors for different accessories

CS Kit Leads with SAE Plug

3cs leads - sae

2 Prong SAE Plug for battery chargers, etc., WITH 16 AWG wire. (NOW WITH SAE CAP)

CS Kit Leads Sealed (SAE) 15 cm (6”) $10.95

Quantity:

CS Kit Leads Sealed (SAE) 30 cm (12”) $11.95

Quantity:

CS Kit Leads Sealed (SAE) 60 cm (24”) $12.95

Quantity:

CS Kit Leads Sealed (SAE) 90 cm (36”) $14.95

Quantity:

CS Kit Leads Sealed (SAE) 120 cm (48”) $16.95

Quantity:

CS Kit Leads Sealed (SAE) 160 cm (64”) $18.95

Quantity:

CS Kit Leads with T-Connector

3cs leads - powerlet

2 Prong T-Connector for Powerlet and Hella type Socket - with 18 AWG wire

CS Kit Leads Sealed (TCON) 15 cm (6”) $10.95

Quantity:

CS Kit Leads Sealed (TCON) 30 cm (12”) $11.95

Quantity:

CS Kit Leads Sealed (TCON) 60 cm (24”) $12.95

Quantity:

CS Kit Leads Sealed (TCON) 90 cm (36”) $14.95

Quantity:

CS Kit Leads Sealed (TCON) 120 cm (48”) $16.95

Quantity:

CS Kit Leads Sealed (TCON) 160 cm (64”) $18.95

Quantity:

CS Kit Leads with 1/4” Pushons

3cs leads - pushons

2 1/4” Sheathed Push-on Receptacles for Automotive Sockets etc. - with 18 AWG wire

CS Kit Leads Sealed (.250”) 15 cm (6”) $10.95

Quantity:

CS Kit Leads Sealed (.250”) 30 cm (12”) $11.95

Quantity:

CS Kit Leads Sealed (.250”) 60 cm (24”) $12.95

Quantity:

CS Kit Leads Sealed (.250”) 90 cm (36”) $14.95

Quantity:

CS Kit Leads Sealed (.250”) 120 cm (48”) $16.95

Quantity:

CS Kit Leads Sealed (.250”) 160 cm (64”) $18.95

Quantity:

sae-w-cap

2P SAE Now with Cap

tconfem-new

2P T Connector for Sockets

250 pushons

2 Sheathed Plated 1/4” Pushons


CS Splitters - NOTE: all CS Splitters are now a more compact 15 cm (6 in)

These splitters are designed to allow you to power even more accessories from your CS Kit.

All splitters are 15 cm(6”) long.

They are made of high quality Yazaki wire of 0.75 sqmm (18 AWG), with high temp flexible sheathing.

You can order any of the combinations below and more. Pick the connectors you need for your accessories.

The Splitters below are examples of possible choices, and plug into the CS Kit Outputs, or the CS Kit Extensions above.

Two CS Kit outputs - use to split one CS Kit output to two.

One T-Connector for Powerlet type sockets, and one set of insulated push on 1/4” females - use to connect one CS Kit output to two different sockets.

Two sets of 1824 Posi-Locks for the ultimate in easy installations. Also use when you have devices with pigtail wires.

Another output option (not shown) is a high quality SAE connector with cap.

splitters-1

CS Kit Sealed Splitter $19.95

Option 1
Option 2
Quantity:


Lead Install Page
