3 Circuit Solution HD - also on this page: extra connectors, leads, splitters, and other options
This Kit is for higher current needs. Each circuit of the HD unit is 15A capable. Total maximum current draw max for the HD Kits is 35A. This Kit uses unsealed .250” connectors that are easy to work with if crimping or soldering.
There are 2 versions which connect to your bike in different ways. Battery version connects directly to the bike’s battery. The Powerlink version need a Powerlink Battery Leads to connect to your bike’s battery. Both versions have 2 relay switched circuits and 1 unswitched always on circuit. The Unswitched circuit can be for battery charging. Both switched circuits will be relay switched, using 2 switching leads with PosiTaps included for easy and secure connections to a 12V switched wire and ground on your bike.
BATTERY CONNECT VERSION - connects directly to your bike’s battery
(mating connectors, fuses, and cable ties included)
NEW - now with a Choice of direct Battery Connection as shown above, or a Powerlink Connection, as shown below, with a 2P heavy duty sealed male connector to plug into the Powerlink Battery Leads. This option allows you to use the Powerlink jumpstart system or add another high power circuit to the bike for high power horns etc.

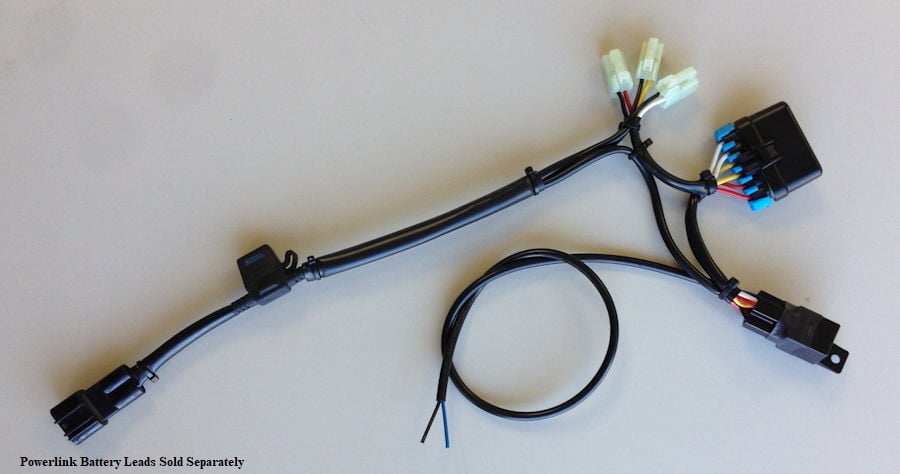

POWERLINK CONNECT VERSION - see the Powerlink Page for more info on this system.
(mating connectors, fuses, and cable ties included)
Features:
- Heavy Duty Panasonic high temp sealed 40A relay with relay socket
- main 30A fuseholder with included 30A ATM fuse plus a spare
- Metri-Pack 3 ATM sealed fuseholder with cover cap - comes with five circuit fuses (15A,10A,7.5A,5A,2A) for accessories such as: headlight relay kit, Power Socket, Heated Grips, etc. You can install other sizes of fuses for what ever you need in the three positions up to 15A per circuit, but a maximum of 30A fuse must be in the main fuseholder.
- all wires and sheathing are 100 C high temp cross linked type.
- relay switching lead comes with a Posi-Tap for easy connection to an ignition switched wire on your bike.
- Switched circuits are turned off when the bike is shut down. An unswitched circuit is always hot. Yes you can charge your bike’s battery through the unswitched circuit.
- you get full time power to the fuse with the red wires, and switched power to the yellow and white wires
- see here for extra connectors and terminals - see here for Kit options - see here for install instructions
|
3 Circuit Solution HD $54.95
|
|
|
|
3 Circuit Solution HD LONG $59.95
|
|
|
|
Regular kit is 16 inches (40 cm), LONG version is 48 inches(122 cm)
|
|
|
|
|
NEED IT FAST?
See my Shipping Page to make sure you get EMS fast international shipping.
|
|
|
Extra connectors for the 3CS-HD
|

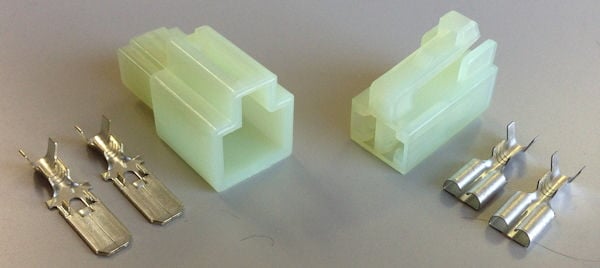

2P250 CNA Tang-Less Set
Tough plastic housings with tin plated brass 2 sqmm terminal set. Click below to buy.
|
|
|
2P250-CNA-TL Set $2.83
|
|
|
|
|
|
|
2P250-CNA-TL Female $1.79
|
|
|
|
Extra terminals for the 3CS-HD connectors
|
.250 Tang-Less Female Receptacles $0.12 Each
On the right all three sizes are shown. Choose your size according to the wire size to be used. Terminal ‘size’ is the maximum size wire it will take.
|
|
|
3 mm2 (12 AWG)
|
|
|
2 mm2 (14 AWG)
|
|
|
.4 mm2 (20 AWG)
|
|
|
|
|
|
|
.250 Tang-Less Male Tabs $0.16 Each
On the right all three sizes are shown. Choose your size according to the wire size to be used. Terminal ‘size’ is the maximum size wire it will take.
|
|
|
|
|
3 mm2 (12 AWG)
|
|
|
2 mm2 (14 AWG)
|
|
|
|
.4 mm2 (20 AWG)
|
|
|
|
|
|
|

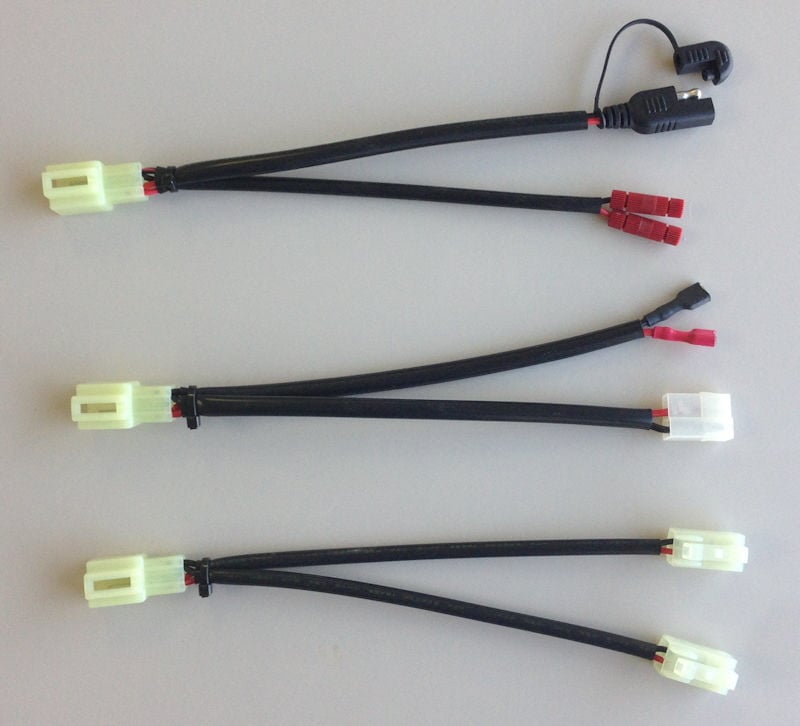

3CS HD Splitters - NOTE: all CS Splitters are now a more compact 20 cm (8 in)
These splitters allow you to use an output for 2 circuits which will share the same fuse.
Made using high temp 18 AWG wire and high temp sheathing. Each side of the splitter is good up to 10A, total of 15A for the two sides.
Below are shown all the possible choices you can get, you can choose both outputs.
|
|
|
|
|
|
|
|
|
A set of 1824 Posi-Locks and an SAE plug with cap shown here.
|
|
|
|
One T-Connector for Powerlet type sockets, and one set of insulated push on 1/4” females - use to connect one 3CS output to two different sockets.
|
|
|
|
Two 3CS-HD outputs - use to split one 3CS output to two.
|
|
|
|
3CS HD Splitter $19.95
|
|
|
|
3CS HD Leads
|
3CS-HD Extension Leads
These leads are an extension for the 3CS-HD outputs. Available in 3 lengths and made from the highest quality components. Made with high temp 16 AWG wire and high temp sheathing.
|
|
|
3CS-HD Extension Leads 80 cm (32”) $12.95
|
|
|
3CS-HD Extension Leads 120 cm (48”) $14.95
|
|
|
3CS-HD Extension Leads 160 cm (64”) $16.95
|
|
|
|
3CS-HD Leads with SAE Plug
These leads are a complete solution to add an SAE plug to your 3CS-HD. Available in 3 lengths and made from the highest quality components.
|
|
|
2 Prong SAE Plug for battery chargers, etc., WITH 16 AWG wire. (NOW WITH SAE CAP)
|
|
|
3CS-HD Leads to SAE w/cap 80 cm (32”) $12.95
|
|
|
3CS-HD Leads to SAE w/cap 120 cm (48”) $14.95
|
|
|
3CS-HD Leads to SAE w/cap 160 cm (64”) $16.95
|
|
|
|
|
3CS Kit Options:
FREE - Switching Lead Posi-Tap Choice: I now give you a choice of a Posi-Tap to suit different wire sizes. Some bikes, especially CanBUS bikes have very small wires. The parking light wire definitely needs a PTA2022 it’s so small. There is no charge for this option but of course you must be buying a 3CS Kit above. See the Posi Products Page for info about Posi-Taps and their sizes.
The Kit’s default is the PTA1800 which will fit most bikes but it’s nice to have the right size.
Order a few extra sizes from the Posi Products Page and make sure you have one that fits just right.
|
Switching Lead Posi-Tap Choice (Choose Once ONLY for each Kit you’re buying)
|
|
CanBUS Protective Diode Option: A protective diode can be ordered inline on the ignition switched lead, preventing reverse current flow back to the bike. This is highly recommended for CANBus bikes.
|
Protective Diode in Switching Wire Option $5.95
|
|

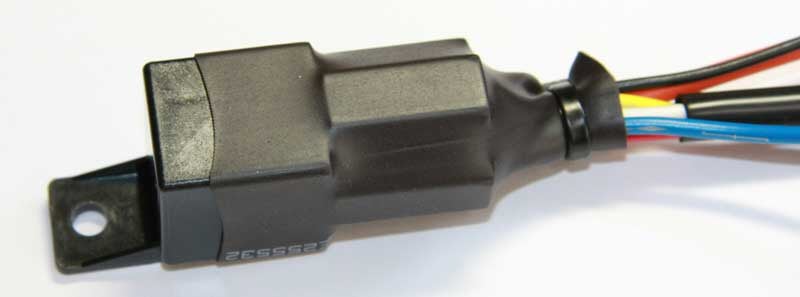

Relay Weather Proofing Option: A large sheath of removable shrinktube is shrunk over the relay connection to provide water proofing for those who like to cross rivers and get their bike wet. You can also buy this shrinktube here and add your own weather proofing.
|
Relay Weather Proofing Option $2.95
|
|
Easy Mount ‘Tree’ Clip: Pushes into a hole to hold the 3 fuse holder in place. Clips onto the back of the cap.
|
 |
 |
|
|
|
|
|
MP280-Tree Clip $0.95
|
|
|
|
