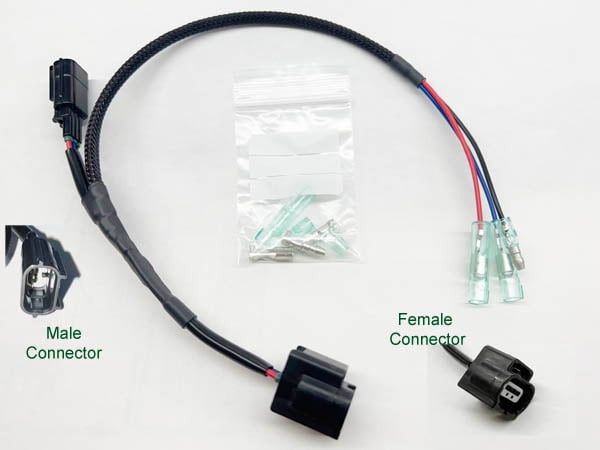

4CS Fuse panel Kit
This kit was developed for the 2018 CB500X, other models will
also fit if they have the 2P aux power connector under the seat.
Please contact us if you have a similar model and are unsure if
this Kit will fit your bike. We would love to know all models
this Kit will fit. This Kit uses the 2P aux power connector to
switch its relay. With our aux
power splitter you can still use the connector for the Honda
aux power adapter or other purposes. These bikes have limited
area to mount a fuse panel, but this kit makes installation
easy, mounting everything near the battery compartment under the
seat.
 |
PLEASE NOTE: Some bikes are wired with battery lead positions
reversed. In all cases you should check your bike’s battery
connectors and order the appropiate battery leads on this kit.
Most will be POS lead +6”, some will need NEG lead +6”. Both
leads should leave the battery on the open side and the kit will
locate in front of the battery. The furthest battery post
determines the battery lead lengths you will choose. Usually it
is POS that is longer and that is the default you will get as
shown above.
POWERLINK VERSION (pic to come)
Instead of a battery connection, a large 2P connector allows
Powerlink connection to use Jumpers or Splitters.
Battery Leads must be bought separately, see the Powerlink Page
above.
|
4CS Sealed for CB500X $64.95
|
|
FEATURES:
- 1 Un-switched circuit for battery charging, and power when
bike is off
- 3 switched circuits go on and off with the bike
- each circuit has a 10A max capacity, total kit max capacity
is 30A
- all components are sealed
- mating sealed connectors are included,
extras available below
- fuseholders can each hold an extra fuse
- all wires and sheathing high temp type
- extensions, leads, and splitters available below
- 4 plugs are now included so you can make caps for two
circuit outputs you aren’t using
- if your bike’s connector is in use, get the splitter below

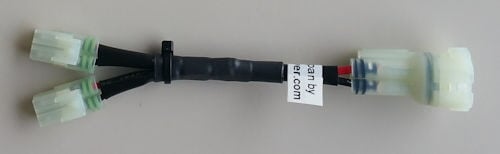

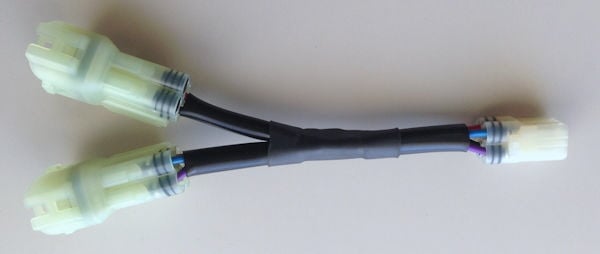

Aux Power
Splitter
If your bike’s connector is in use, you will need this
splitter to connect our 4CS Kit.
|
Aux Power Splitter CB500 $19.95
|
|

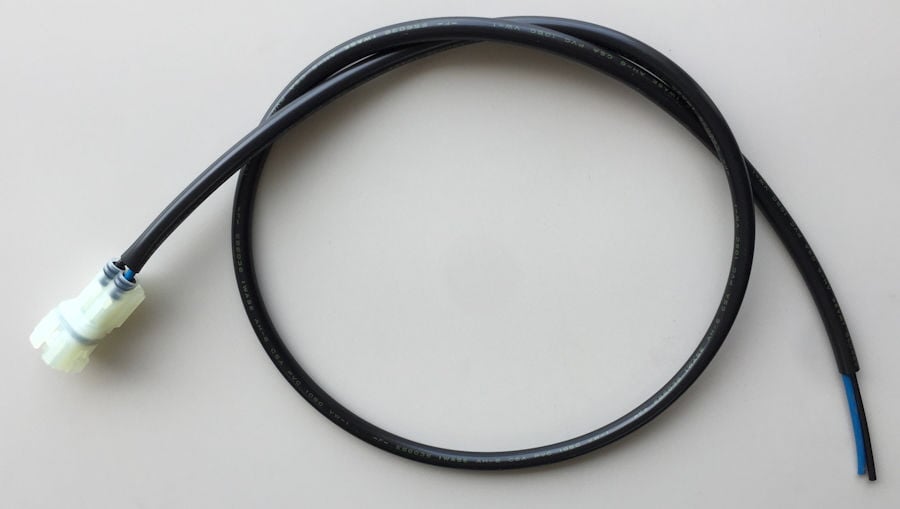

Aux Power Leads
These 36” (92 cm) leads (two 16 AWG wires) will connect to
the bike’s aux connector or the splitter above. You can power
your GPS, charge your phone, etc.
|
Aux Power Leads CB500 $14.95
|
|
Extra Connectors for above
splitter and leads
|
|
|
|
2 Position .090 Waterproof Connector. L -
Fits wires from .5mm - 1.25mm (20 - 16 AWG).
S - Fits wires
from 0.25mm - 0.5mm (28 - 20 AWG).
|
|
|
2P090WP-HM-L Set $4.29 ea
|
|
|
|
2P090WP-HM-S Set $4.29 ea
|
|
|
|
|
|
|
|
Male Half L $2.95 ea
|
|
|
Male Half S $2.95 ea
|
|
|
|
|
|
Female Half L $1.95 ea
|
|
|
Female Half S $1.95 ea
|
|
|
|
Extra Connectors for CS Kits:
Male
connectors are included with each CS kit to install on your
accessory’s wires, order more below to have spares, make up your
own extensions and splitters, etc.
|
2 Position .090 Waterproof MT Connector.
Fits wires from .5mm - 1.25mm (22 - 16 AWG).
Small size tough plastic housing with
inner seal. Seals on each wire.
Click below
to buy:
|
|
|
2P090WP-MT Connector Set $3.95
ea
|
|
|
|
Crimper for sealed connector terminals:
The Hozan P-706 does a pro job on these types,
go here to buy. This is a great tool for a home shop,
most connectors on modern bikes are this type.
You don’t need a crimper to install these. You can pinch and
solder if you know how to solder. I have a
page about crimping and soldering here.
CS Sealed Leads and Extensions
Various pre-finished leads of the highest quality are
available for running your circuit wires from the CS Kit
under the seat to up front to power a socket, SAE, aux
lights, or other devices. Leads are available for a variety
of power socket connections to plug in directly. Extensions
can be used where you install the male connectors that come
with the CS Kit on the wires of your device (like an
automotive socket with pigtails), everything then plugs
together. Wires, connectors, and sheathing are high temp,
highest quality, Japan made by Eastern Beaver.
CS
Extensions
- pre-made solutions to connect
from the CS Kits to your accessory.
- male connector on one end and a
female on the other end, male plugs into a CS Kit output
connector - then you can use one of the included (comes with
every CS Kit) male connectors on your accessory wires to
complete the circuit - give you a modular way to connect
your circuits
|
CS Kit Extensions 80 cm (32”) $12.95
|
|
|
CS Kit Extensions 120 cm (48”) $14.95
|
|
|
CS Kit Extensions 160 cm (64”) $16.95
|
|
CS Kit Leads - these
leads have specific terminating connectors for different
accessories
|
|
CS Kit Leads with SAE Plug
|
|
|
|
|
 |
|
|
|
2 Prong SAE Plug for battery
chargers, etc., WITH 16 AWG wire.
(NOW WITH SAE CAP)
|
|
|
CS Kit Leads Sealed (SAE) 15 cm (6”)
$10.95
|
|
|
CS Kit Leads Sealed (SAE) 30 cm
(12”) $11.95
|
|
|
CS Kit Leads Sealed (SAE) 60 cm
(24”) $12.95
|
|
|
CS Kit Leads Sealed (SAE) 90 cm
(36”) $14.95
|
|
|
CS Kit Leads Sealed (SAE) 120 cm
(48”) $16.95
|
|
|
CS Kit Leads Sealed (SAE) 160 cm
(64”) $18.95
|
|
|
|
|
|
CS Kit Leads with T-Connector
|
|
|
|
|
|
 |
|
|
|
2 Prong T-Connector for Powerlet and
Hella type Socket - with 18 AWG wire
|
|
|
|
CS Kit Leads Sealed (TCON) 15 cm
(6”) $10.95
|
|
|
CS Kit Leads Sealed (TCON) 30 cm
(12”) $11.95
|
|
|
CS Kit Leads Sealed (TCON) 60 cm
(24”) $12.95
|
|
|
CS Kit Leads Sealed (TCON) 90 cm
(36”) $14.95
|
|
|
CS Kit Leads Sealed (TCON) 120 cm
(48”) $16.95
|
|
|
CS Kit Leads Sealed (TCON) 160 cm
(64”) $18.95
|
|
|
|
|
CS Kit Leads with 1/4” Pushons
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
2 1/4” Sheathed Push-on Receptacles
for Automotive Sockets etc. - with
18 AWG wire
|
|
|
|
CS Kit Leads Sealed (.250”) 15 cm
(6”) $10.95
|
|
|
|
CS Kit Leads Sealed (.250”) 30 cm
(12”) $11.95
|
|
|
|
CS Kit Leads Sealed (.250”) 60 cm
(24”) $12.95
|
|
|
|
CS Kit Leads Sealed (.250”) 90 cm
(36”) $14.95
|
|
|
|
CS Kit Leads Sealed (.250”) 120 cm
(48”) $16.95
|
|
|
|
CS Kit Leads Sealed (.250”) 160 cm
(64”) $18.95
|
|
|
|
|
|
 |
|
|
|
2P SAE Now with Cap
|
|
|
|
|
|
|
 |
|
|
2P T Connector for Sockets
|
|
|
|
 |
|
|
|
|
|
2 Sheathed Plated 1/4” Pushons
|
|
|
|
CS Splitters - NOTE: all CS
Splitters are now a more compact 15 cm (6 in)
These splitters are designed to
allow you to power even more accessories from your CS Kit.
All splitters are 15 cm(6”) long.
They are made of high quality
Yazaki wire of 0.75 sqmm (18 AWG), with high temp flexible
sheathing.
You can order any of the
combinations below and more. Pick the connectors you need
for your accessories.
The Splitters below are examples
of possible choices, and plug into the CS Kit Outputs, or
the CS Kit Extensions above.
|
|
|
|
|
|
|
|
Two CS Kit
outputs - use to split one CS Kit output
to two.
|
|
|
|
One
T-Connector for Powerlet type sockets,
and one set of insulated push on 1/4”
females - use to connect one CS Kit
output to two different sockets.
|
|
|
|
Two sets of
1824
Posi-Locks for the ultimate in easy
installations. Also use when you have
devices with pigtail wires.
|
|
|
|
Another
output option (not shown) is a high
quality SAE connector with cap.
|
|
|
|
|
CS Kit Sealed Splitter $19.95
|
|
Lead Install Page
|
