40A Mini Relay and Socket
|
|
40A mini relay made by Matsushita (Panasonic) in Japan. These are sealed type 4 blade normally open heavy duty relay. These have a high temp shell.
|
|
|
|
|
|
40A Panasonic Relay - $11.95
|
|
|
|
|
|
|
Socket for Mini Relay
|
|
|
|
|
|
Made for 4 blade mini relays.
Supplied with tin plated Nippon Tanshi receptacles in two sizes.
See bottom of this page for extra terminals.
|
|
|
Mini Relay Socket - $2.75
|
|
|
|
20A Micro Relays and Socket -
Normally Open
|
|
20A micro relay made by Matsushita (Panasonic) in Japan. These are sealed type with high temperature housings.
4 blade type heavy duty relay conservatively rated for long life and hostile environments.
With mount tab, 1.8 watt power consumption.
|
|
|
|
|
|
20A
(NO) Panasonic Relay with Tab - $9.95
|
|
|
|
|
Socket for Micro Relays
|
|
|
|
|
|
|
Locks into 20A relays for secure wiring. You can use regular 1/4” receptacles but these connectors are a much better way to connect your wires to these relays.
Supplied with 4 tin plated receptacles in two sizes. See below for extra terminals.
|
|
|
20A Relay Socket - $1.75
|
|
|
|
20A Micro Relay without Tab -
Normally Open
|
|
|
20A micro relay made by Matsushita (Panasonic) in Japan. These are sealed type with high temperature housings.
4 blade type heavy duty relay conservatively rated for long life and hostile environments.
No mount tab, 1.4 watts low power consumption type.
|
|
|
|
20A
(NO) Panasonic Relay NO Low Power - $9.49
|
|
|
|
20A Micro Relay without Tab
- Normally Closed
|
|
|
20A micro relay made by Matsushita (Panasonic) in Japan. These are sealed type with high temperature housings. 4 blade type heavy duty relay conservatively rated for long life and hostile environments.
No mount tab, 1.4 watts low power consumption type.
|
|
|
|
20A
(NC) Panasonic Relay NC Low Power - $9.99
|
|
|
|
ISO Relay and Socket
|
|
|
|
|
35A ISO Relay made by Panasonic in Japan.
This relay fits all ISO sockets with this configuration of pins. It uses two sizes of terminals, .250” and .187”, as shown on the right.
Used on some NC750 & NC700 Honda
Motorcycles.
|
|
ISO Relay 35A - $9.95
|
|
|
|
|
|
|
ISO Relay Socket made by Mitsubishi in Japan. With locking retainer to keep the relay in place.
This socket uses two sizes of terminals, .250” and .187”, extras are available at bottom of this page.
|
|
|
|
|
|
|
|
ISO Relay Socket - OUT OF STOCK
|
|
|
|
|
|
|
|
Terminals for relay sockets
40A and 20A relay sockets on this page take .250” terminals - ISO relay sockets use .250” and .187”

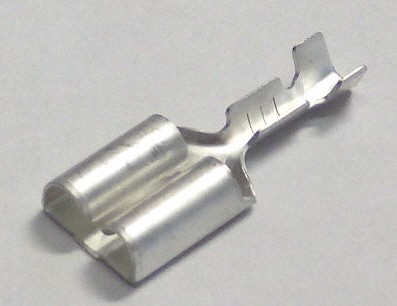

Relay Socket .250 Terminals for small wires
Tin Plated brass .250 Tangless
Fits wires from .75 - 1.25 sqmm (18 - 16 AWG).
Tab opening is .250 inch in width.
|
|
|
F250-TL-P-2 - $0.12 ea
|
|
|
|
|

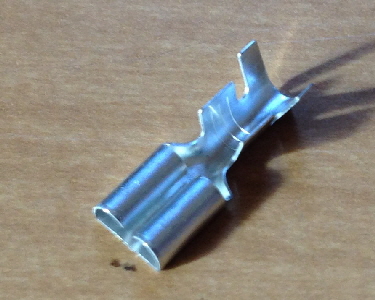

Relay Socket .250 Terminals for large wires
Tin Plated brass .250 Tangless
Fits wires from 2 - 5 sqmm (14 - 10 AWG).
Fits large single or multiple wires.
Tab opening is .250 inch in width.
|
|
|
F250-TL-P-3 - $0.12 ea
|
|
|
|
|

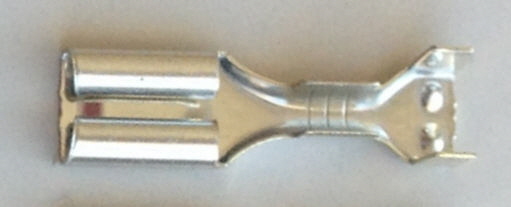

ISO Relay Socket .187” Terminals
Tin Plated brass .187 Tangless
Fits wires from .5 - 1.25 sqmm (20 - 16 AWG).
Tab opening is .187 inch in width.
|
|
|
F187-TL-P-2 - $0.12 ea
|
|
|
|
|
See here for relay pinout information.
|
