2 Circuit Solution

- These wiring kits are all part of a modular system that uses the same connectors and parts.

- We make various compatible extensions, leads, and splitters further down this page

There are two versions as shown below:

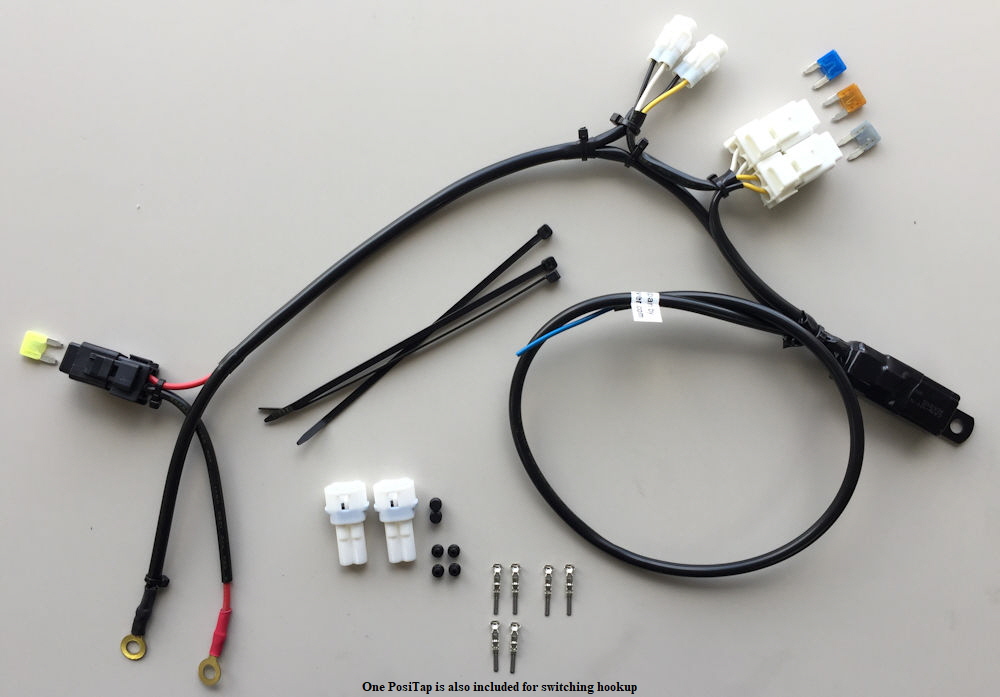

Switched Version
2cs-asw
Switched version uses a relay, its output is always on. It will switch both circuits on and off with the bike.

2CS Sealed - Switched $37.95

Connection Option

Quantity:

2CS Sealed - Switched LONG $42.95

Connection Option

Quantity:

Regular kit is 16 inches (40 cm), LONG version is 48 inches(122 cm)

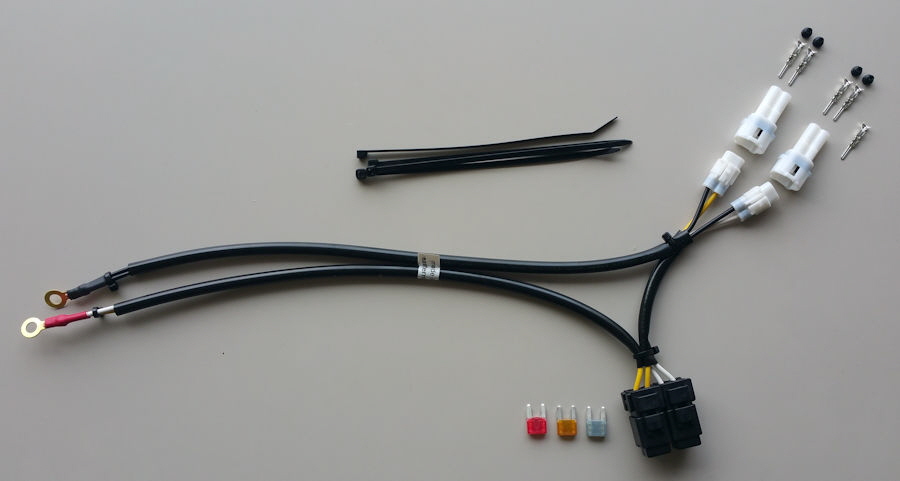

Unswitched Always On Version
2cs-u
Unswitched version does not use a relay, its output is always on. It is therefore much simpler and cheaper.

2CS Sealed - Unswitched $22.95

Connection Option

Quantity:

2CS Sealed - Unswitched LONG $27.95

Connection Option

Quantity:

Regular kit is 16 inches (40 cm), LONG version is 48 inches(122 cm)


For modest power requirements - easy to install, tough and rugged construction. Perfect for bike rentals, your second bike, etc. Max capacity 20A. Max each circuit 15A.

Two Versions: both outputs relay switched on and off with the bike, or both outputs always on, both versions are individually fused

Switched version uses a small 20A relay as shown above. Output is only on when the bike is on. A switching lead must be connected to a switched POS source on the bike. A PosiTap is provided for easy and secure connection.

Unswitched version does not use a relay, its output is always on. It is therefore much simpler and cheaper.

Comes with mating sealed connectors, you can easily install on your wires, or buy pre-made leads, splitters, accessories and more on the Accessories Page.

You can add a splitter to power two devices.

All Japan components manufactured by hand in Japan by Eastern Beaver.

Powerlink Option:

With this option, instead of battery connectors, a 2P sealed connector is installed to connect to our Powerlink system. With this option you must choose and buy a Powerlink Battery Leads unit. (pic coming soon)

The Powerlink system allows use of our Jumper Cables, or you can use a Powerlink Splitter to connect this kit plus one other, for example a High Power Horn Kit, or Headlight Relay Kit, etc.


CanBUS Protective Diode Option: A protective diode can be ordered inline on the ignition switched lead, preventing reverse current flow back to the bike. This is highly recommended for CANBus bikes.

Protective  Diode in Switching Wire Option $5.95



Extra Connectors for CS Kits:

Male connectors are included with each CS kit to install on your accessory’s wires, order more below to have spares, make up your own extensions and splitters, etc.

2 Position .090 Waterproof MT Connector.

Fits wires from .5mm - 1.25mm (22 - 16 AWG).

Small size tough plastic housing with inner seal. Seals on each wire.

Click below to buy:

2P090WP-MT Connector Set  $3.95 ea

Quantity:

2p090wp-mt-new

Male Half $2.49 ea

Quantity:

Female Half $1.95 ea

Quantity:


Crimper for sealed connector terminals:

The Hozan P-706 does a pro job on these types, go here to buy. This is a great tool for a home shop, most connectors on modern bikes are this type.

You don’t need a crimper to install these. You can pinch and solder if you know how to solder. I have a page about crimping and soldering here.




CS Sealed  Leads and Extensions

Various pre-finished leads of the highest quality are available for running your circuit wires from the CS Kit under the seat to up front to power a socket, SAE, aux lights, or other devices. Leads are available for a variety of power socket connections to plug in directly. Extensions can be used where you install the male connectors that come with the CS Kit on the wires of your device (like an automotive socket with pigtails), everything then plugs together. Wires, connectors, and sheathing are high temp, highest quality, Japan made by Eastern Beaver.



CS Extensions

- pre-made solutions to connect from the CS Kits to your accessory.

- male connector on one end and a female on the other end, male plugs into a CS Kit output connector - then you can use one of the included (comes with every CS Kit) male connectors on your accessory wires to complete the circuit - give you a modular way to connect your circuits

3cs-s-extensions

CS Kit Extensions 80 cm (32”) $12.95

Quantity:

CS Kit Extensions 120 cm (48”) $14.95

Quantity:

CS Kit Extensions 160 cm (64”) $16.95

Quantity:


CS Kit Leads - these leads have specific terminating connectors for different accessories

CS Kit Leads with SAE Plug

3cs leads - sae

2 Prong SAE Plug for battery chargers, etc., WITH 16 AWG wire. (NOW WITH SAE CAP)

CS Kit Leads Sealed (SAE) 15 cm (6”) $10.95

Quantity:

CS Kit Leads Sealed (SAE) 30 cm (12”) $11.95

Quantity:

CS Kit Leads Sealed (SAE) 60 cm (24”) $12.95

Quantity:

CS Kit Leads Sealed (SAE) 90 cm (36”) $14.95

Quantity:

CS Kit Leads Sealed (SAE) 120 cm (48”) $16.95

Quantity:

CS Kit Leads Sealed (SAE) 160 cm (64”) $18.95

Quantity:

CS Kit Leads with T-Connector

3cs leads - powerlet

2 Prong T-Connector for Powerlet and Hella type Socket - with 18 AWG wire

CS Kit Leads Sealed (TCON) 15 cm (6”) $10.95

Quantity:

CS Kit Leads Sealed (TCON) 30 cm (12”) $11.95

Quantity:

CS Kit Leads Sealed (TCON) 60 cm (24”) $12.95

Quantity:

CS Kit Leads Sealed (TCON) 90 cm (36”) $14.95

Quantity:

CS Kit Leads Sealed (TCON) 120 cm (48”) $16.95

Quantity:

CS Kit Leads Sealed (TCON) 160 cm (64”) $18.95

Quantity:

CS Kit Leads with 1/4” Pushons

3cs leads - pushons

2 1/4” Sheathed Push-on Receptacles for Automotive Sockets etc. - with 18 AWG wire

CS Kit Leads Sealed (.250”) 15 cm (6”) $10.95

Quantity:

CS Kit Leads Sealed (.250”) 30 cm (12”) $11.95

Quantity:

CS Kit Leads Sealed (.250”) 60 cm (24”) $12.95

Quantity:

CS Kit Leads Sealed (.250”) 90 cm (36”) $14.95

Quantity:

CS Kit Leads Sealed (.250”) 120 cm (48”) $16.95

Quantity:

CS Kit Leads Sealed (.250”) 160 cm (64”) $18.95

Quantity:

sae-w-cap

2P SAE Now with Cap

tconfem-new

2P T Connector for Sockets

250 pushons

2 Sheathed Plated 1/4” Pushons


CS Splitters - NOTE: all CS Splitters are now a more compact 15 cm (6 in)

These splitters are designed to allow you to power even more accessories from your CS Kit.

All splitters are 15 cm(6”) long.

They are made of high quality Yazaki wire of 0.75 sqmm (18 AWG), with high temp flexible sheathing.

You can order any of the combinations below and more. Pick the connectors you need for your accessories.

The Splitters below are examples of possible choices, and plug into the CS Kit Outputs, or the CS Kit Extensions above.

Two CS Kit outputs - use to split one CS Kit output to two.

One T-Connector for Powerlet type sockets, and one set of insulated push on 1/4” females - use to connect one CS Kit output to two different sockets.

Two sets of 1824 Posi-Locks for the ultimate in easy installations. Also use when you have devices with pigtail wires.

Another output option (not shown) is a high quality SAE connector with cap.

splitters-1

CS Kit Sealed Splitter $19.95

Option 1
Option 2
Quantity:


Lead Install Page

NEED IT FAST?

See my Shipping Page to make sure you get EMS fast international shipping.
