ST1300 PC-8R 40A Accessory Fuse Panel ST1300 PC-8 50A Accessory Fuse Panel ( soon ) ST1300Switching Lead - Generic Quartet Simplified Harness for Honda ST1300 ST1300 SCS Reset ( Diagnostic Port Jumper )

ST1300 PC-8R Fuse Panel

Plug and play accessory fuse box for the Honda ST1300. Provides 6 switched and 2 direct power connections. Uses the diagnostic port ( 4 pIn )
for switched input ( only draws 0.065A and does not make any problem for ECU ). This kit was designed on the 2008 ST1300 but will work on any ST1300 with the 4 pin diagnostic port ( right rear under the pillion seat ).



Figure 1: PowerLink Version Shown

• PC-8R Specifications and Features:
• - 4 threaded insert nuts provide case mounting and fuse panel installation mounting points
• - comes with an assortment of ATM fuses, one for each output circuit and a few extras
• - 8 hot + outputs (2 un-switched circuits, 6 switched circuits)
• - Switched circuits are turned off when the bike is shut down. An un-switched circuit is always hot - can be used for charging the battery
• - 8 ground outputs - much better to ground your auxiliary circuits here than on a bike’s frame
• - maximum fuse panel capacity 40 Amps (combination of these limits 30A/20A - switched/un-switched)
• - maximum circuit capacity 15 Amps
• - maximum output wire size 12 AWG (3 sqmm)
• - LP Jcase main fuse & spare, included in the kit.
• - all hardware is stainless steel (except input posts which are tin plated steel)
• - black satin polycarbonate cover makes unit splash-proof yet allows it to breathe and stay cool
• - cover mounting tabs on each end can be broken off or left on, depending on mounting choice
• - simple robust design means no overheating and no problems with vibration.

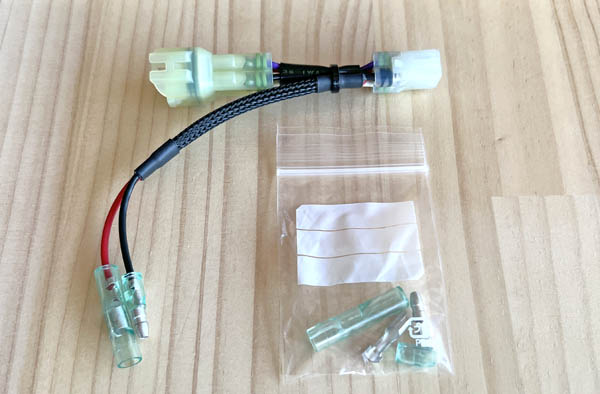

Generic ST1300 Switching Lead - positive & GND

Recommended to limit current to 2A or under on the connection. Connects to the diagnostic port 4 pin red connector.


Use for relays or other Fuse Boxes as a trigger source. Limited to 1A. Switched ( only powered when ignition is ON ).

Generic Switching Lead - $23.95 Quantity:

This Kit plugs into bike’s accessory connector give you a switched and an un-switched output, handy for powering low current accessories, switching a relay, etc. Un-switched red and black wires are 16 AWG. switched purple and black are 18 AWG. Mating connectors and their terminals are included. Black wires are ground. The connector this harness plugs into is under the left side front fairing/cowl usually bundled with a few other connectors under a clear plastic cover.

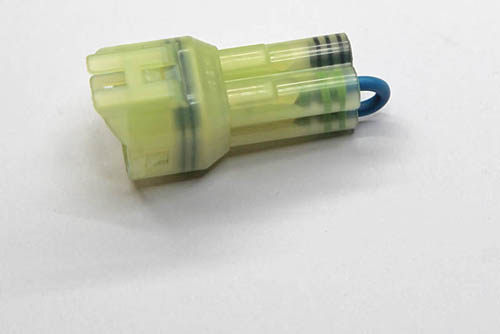

When plugged into the diagnostic port, and the ignition is turned on, diagnostic codes are visible on the dash. Tested on 2008-2012 models. May work
on other year models. Make sure your bike has the 4 pin red diagnostic connector, under the right side ( under pillion seat ).OEM part number 070PZ-ZY3-0100
