Honda CRF250L & CRF250 Rally
CRF300L & CRF300 Rally

CRF250L MD38 2012-2016
CRF250L & CRF250 Rally MD44  2017-2020
CRF250L & CRF250 Rally MD47 2021-2023
CRF300L & CRF300 Rally MD47 2021-2023

PC-8R and Wiring Kit ( 2017 - 2023 Models )
CS Kits
( 2017-2023 Models)
PC-8R and Wiring Kit
( 2012-2016 Models )
2 Pin Front Left Side Aux Connector Splitter
( 2017-2023 Models )
2 Pin Aux Connector Leads
( 2017-2023 Models )
2 Pin Tail Light Splitter
( 2017-2023 Models )



PC-8R and Wiring Kit ( MD47 )
MD47 & MD44 uses a 2 pin connector for the number plate light

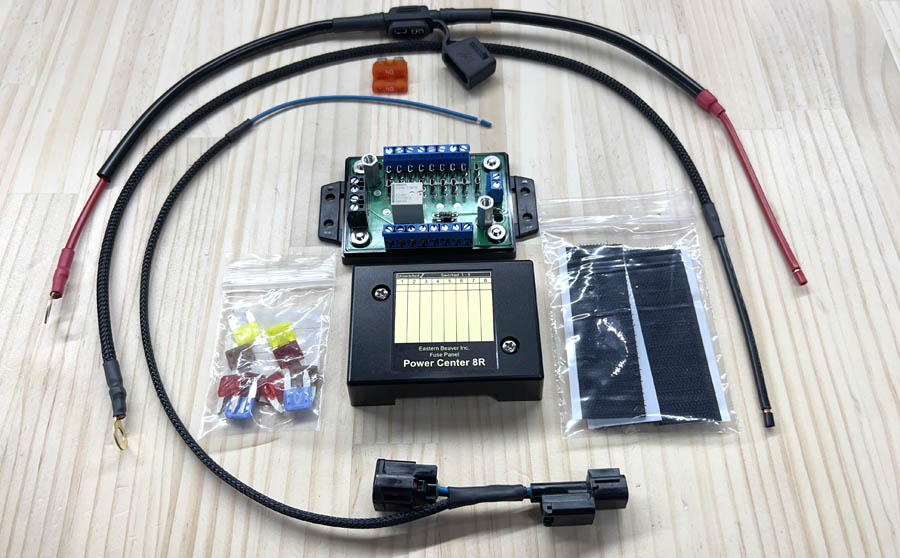

This Kit is fully plug and play and is designed for easy install and a perfect fit. This Kit has a switching connector that plugs in between the tail light connectors.

The PC-8R is a superb fuse panel, full of all the features you need and more! Easy to install, well protected, and with 8 mini fuses, one on each output circuit. Includes 8 output grounds too. The Kit is made from highest quality high temp wire and sheathing. Just strip your circuit wires and insert into the PC-8R outputs and tighten the screws. Both power and ground terminal blocks are built in.

This Kit is 30A max capable ( 300 Rally is 340W @ 5,000rpm with 1/3rd used by the bike so around 227W available for accessories or about 16A @14.2v @5,000rpm ( less at lower rpm ) ),
so plenty big for the Rally and non rally versions.




PC-8R and Wiring Kit for CRF250L/300L
& Rally Versions  MD47     -   $114.95


For 2021-2023 models. ( MD47 )
Fuse box fits under seat as seen in above picture.

PC-8R and Wiring Kit for CRF250L
& Rally Versions  MD44     -   $114.95


For 2017-2020 Models.
Fuse box fits where tool kit currently sits. Tool kit moved to
left side storage

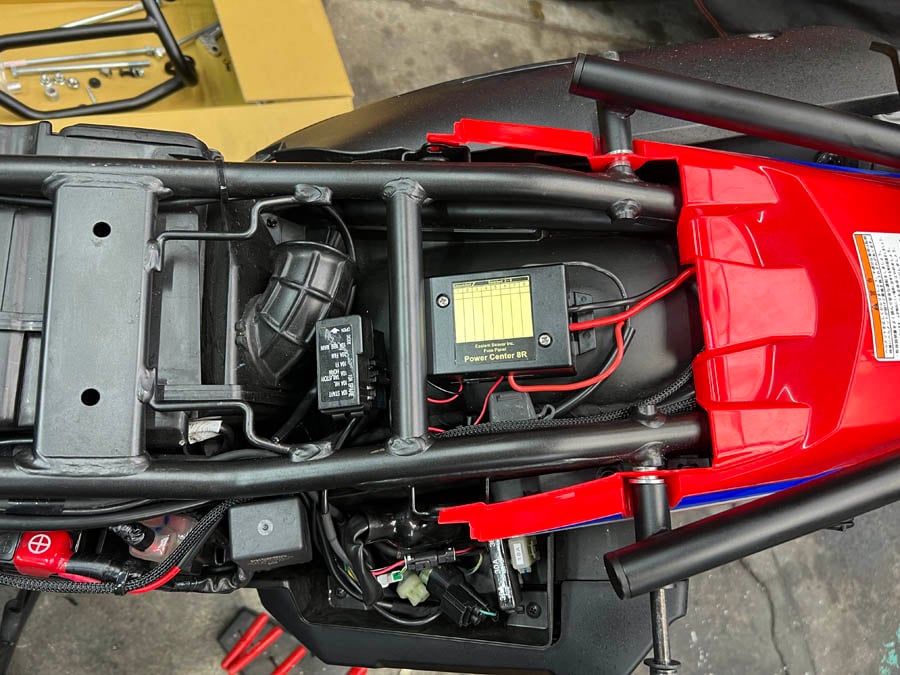

Installed Picture of PC-8R ( MD47 ) Seat clearance is close so keep the fuse panel as far forward as possible.



PC-8R Specifications and Features:

  • - 4 threaded insert nuts provide case mounting and fuse panel installation mounting points
  • - comes with an assortment of ATM fuses, one for each output circuit and a few extras
  • - 8 hot + outputs (2 un-switched circuits, 6 switched circuits)
  • - Switched circuits are turned off when the bike is shut down. An un-switched circuit is always hot - can be used for charging the battery
  • - 8 ground outputs - much better to ground your auxiliary circuits here than on a bike’s frame
  • - maximum fuse panel capacity 30 Amps (30A on switched & 20A on un-switched ) EG 25A Switched & 5A Un-switched  ( total 30A Max ) or 30A Switched & 0A Un-switched )
    ( note if un-switched are used for battery charging, i.e. not at the same time as the bike is running, then un-switched can be up to 20A with Switched at 30A ).
  • - maximum individual circuit capacity 20 Amps (15A continuous)
  • - maximum output wire size 12 AWG (3 sqmm)
  • - all hardware is stainless steel (except input posts which are tin plated steel)
  • - black satin polycarbonate cover makes unit splash-proof yet allows it to breathe and stay cool
  • - cover mounting tabs on each end can be broken off or left on, depending on mounting choice
  • - simple robust design means no overheating and no problems with vibration
  • - I designed this fuse panel with ease of mounting a priority. Therefore there are many mounting options: Dual Lock on back of case, fine threaded screws from back of panel, self tapping screws from inside through PCB inserts to panel, or nuts and screws on the case mounting ears at each end of the case.
  • PC-8R Installation Manual


CS Kits For CRF250L, CRF250 Rally, CRF300L & CRF300 Rally

Shown is 2CS - Available are 1CS, 2CS, 3CS, 4CS
( 1 output, 2 output, 3 output, 4 output )

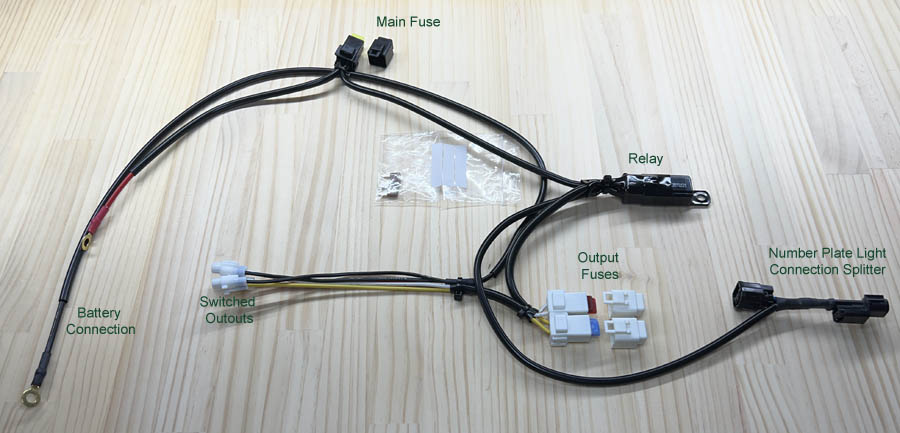

This kit is very easy to mount on the CRF250/300L and Rally. The relay mounts up under the rear fender as does the Number Plate Light Splitter and the

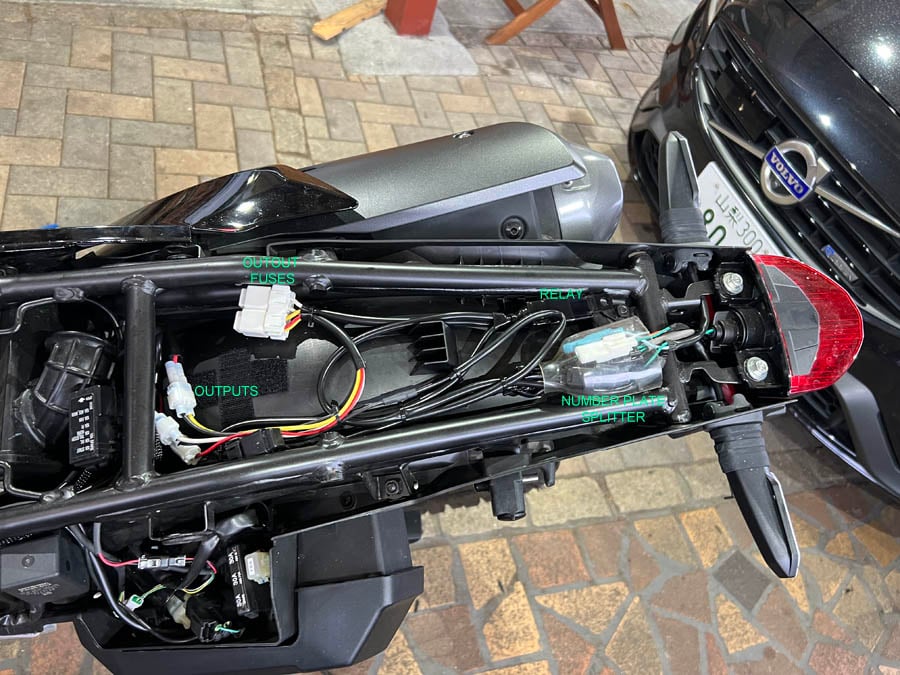

output fuses and outputs are available near the existing fuse box ( see image below ).




CRF250L & Rally ( 2021-2023 MD47 )


1CS Kit For CRF250L/300L
& Rally Versions (MD47)  -    $36.95


2CS Kit For CRF250L/300L
& Rally Versions  (MD47) -    $44.95




3CS Kit For CRF250L/300L
& Rally Versions (MD47)  -    $54.95


4CS Kit For CRF250L/300L
& Rally Versions (MD47)  -    $64.95



CRF250L & Rally ( 2017-2020 MD44 )



1CS Kit For CRF250L/300L
& Rally Versions (MD44)  -    $36.95


2CS Kit For CRF250L/300L
& Rally Versions  (MD44) -    $44.95




3CS Kit For CRF250L/300L
& Rally Versions  (MD44) -    $54.95


4CS Kit For CRF250L/300L
& Rally Versions  (MD44) -    $64.95

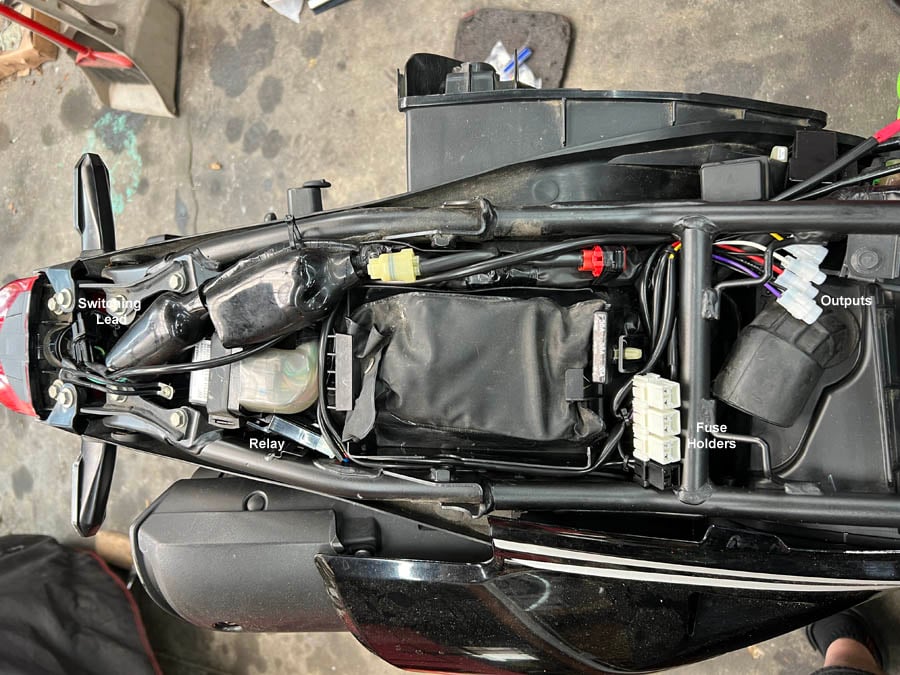

Shown Below - 4CS Installed on 2017 CRF250L Rally ( MD44 ).


Shown  Below- 2CS Installed on 2017 CRF250L Rally ( MD47 ).





CRF250L PC-8R and Wiring Kit ( 2012-2016 )

This kit provides 6 Switched and 2 Un-Switched outputs for electrical accessories on the MD38 CRF models. Each output has a maximum rating of 20A peak
or 15A continuous. The total the fuse panel can support is 30A. Perfect for riders who like to option up their motorcycles, without turning the battery
connections into a rats nest of wires.

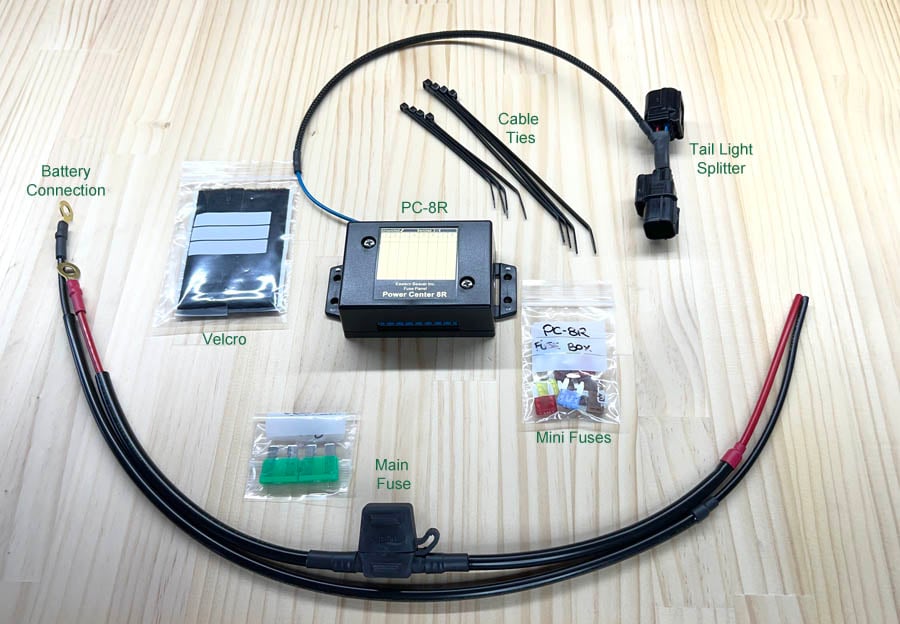

The MD38 uses a 6 pin connector for the Tail and Brake lights. This Tail Light Splitter sits in between the existing connections. There is no
modification to the bike wiring and the kit can be removed when selling the bike ( If desired ). This is a 30A ( good for about 420W stators ),
and more than enough for the 250 stator.




PC-8R and Wiring Kit (MD38)
$116.95



For MD38 CRF250L ( 2012-2016 Models )



Dual Locks Strips - Two pairs of mating 3” (8 cm) Dual Lock strips. Great for many other projects too, this material has 5 times more holding strength than regular Velcro. Strips have excellent adhesive on the back. Clean surfaces with alcohol first.

 2 Sets 3 Inch 3M Dual Lock Strips $4.95


dual-lock-IMG_0831


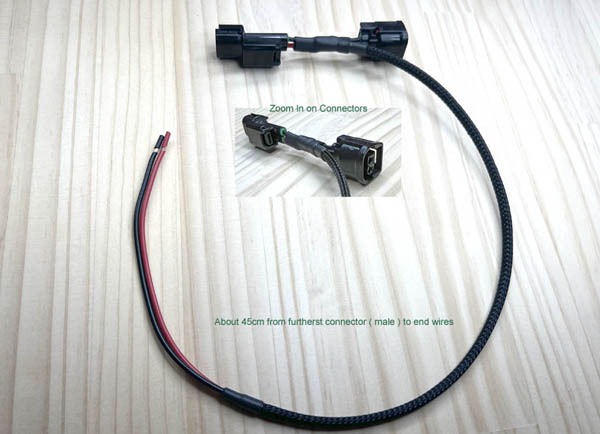

2P Aux Connector Splitter - This splitter plugs into the stock 2P aux power connector left front of wiring loom - allows factory leads and our PC-8 Kit to plug in. You need this if your 2P connector is in use with factory aux lights or something else.

XAdv/CRF250 2P Aux Power Splitter $24.95

xadv-2p-splitter

2P Aux Connector Leads - These leads plug into the stock 2P aux power connector right rear of wiring loom, or the splitter above - allows factory leads and our PC-8 Kit to plug in. You can use this for powering aux lights, GPS, etc.

XAdv/CRF250 Aux Power Leads $14.95

xadv-pl


2 Pin Tail Light Splitter ( MD44 & MD47) - Provides a switched power source for relays, fuse panels or top case lights. Recommend to keep anything connected to 2A or less.











CRF250L/Rally MD44/MD47 Tail Light Splitter $16.95






These connectors and others available here. Crimper and tools here.
