PC-8 50A Fusepanel Kit for Honda VFR1200

This Kit is fully plug and play and is designed for easy install and a perfect fit. This Kit has a switching connector that plugs into the stock 6P aux power connector left front of wiring loom.

The PC-8 is a superb fuse panel, full of all the features you need and more! Easy to install, well protected, and with 8 mini fuses, one on each output circuit. Includes 8 output grounds too. The Kit is made from highest quality high temp wire and sheathing. Just strip your circuit wires and insert into the PC-8 outputs and tighten the screws. Both power and ground terminal blocks are built in.

This Kit is 50A max capable using dual main fuseholders, 30A max for the 6 switched circuits, and 20A max for the 2 unswitched circuits.

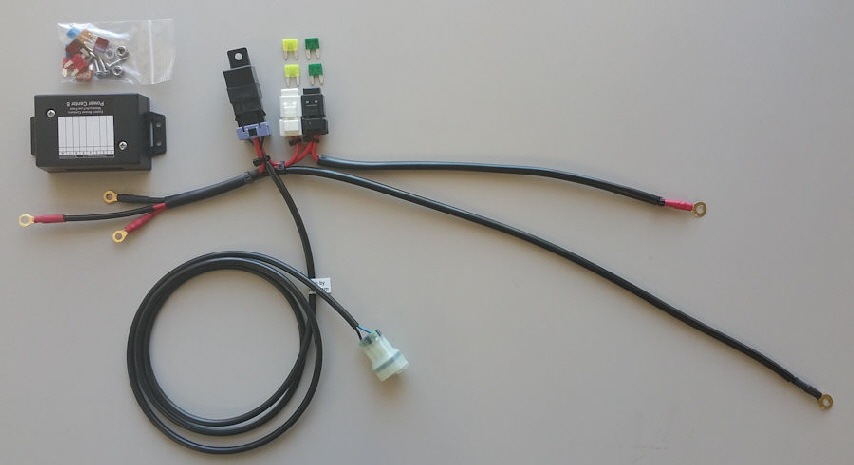

Complete plug and play kit, with all the wiring, a 40A relay, fuses, a PC-8 fusepanel, and more.

Battery Connect Complete Kit

Powerlink Connect Complete Kit

(pic coming soon)

NEW! - The Powerlink Connection option is the same Kit with a connector on the main wires, to plug into the Powerlink Battery Leads, making the overall total Kit the same length. Custom Powerlink Battery Leads are included with this Kit. The Powerlink option allows quick disconnection of the PC-8 Kit for jump starting your bike or another bike from yours, or using a splitter you can hookup the PC-8 and another high current device like a high powered horn. Read all about the Powerlink System and it’s features here.

It is convenient to mount the PC-8 with Dual Lock. You can buy some at the bottom of this page.

PC-8 Specifications and Features:

• - 4 threaded insert nuts provide case mounting and fuse panel installation mounting points
• - comes with an assortment of ATM fuses, one for each output circuit and a few extras
• - 8 hot + outputs (2 unswitched circuits, 6 switched circuits)
• - Switched circuits are turned off when the bike is shut down. An unswitched circuit is always hot - can be used for charging the battery
• - 8 ground outputs - much better to ground your auxiliary circuits here than on a bike’s frame
• - maximum fuse panel capacity 50 Amps (30A/20A - switched/unswitched)
• - maximum circuit capacity 20 Amps (15A continuous)
• - maximum output wire size 12 AWG (3 sqmm)
• - all hardware is stainless steel (except input posts which are tin plated steel)
• - black satin polycarbonate cover makes unit splash-proof yet allows it to breathe and stay cool
• - cover mounting tabs on each end can be broken off or left on, depending on mounting choice
• - simple robust design means no overheating and no problems with vibration
• - I designed this fuse panel with ease of mounting a priority. Therefore there are many mounting options: Dual Lock on back of case, fine threaded screws from back of panel, self tapping screws from inside through PCB inserts to panel, or nuts and screws on the case mounting ears at each end of the case.
• All about the PC-8 with closeup pics and more here.

Dual Locks Strips - Two pairs of mating 3” (8 cm) Dual Lock strips. Great for many other projects too, this material has 5 times more holding strength than regular Velcro. Strips have excellent adhesive on the back. Clean surfaces with alcohol first.  2 Sets 3 Inch 3M Dual Lock Strips $2.95

6P Aux Connector Splitter - This splitter plugs into the stock 6P aux power connector left front of wiring loom - allows factory leads and our PC-8 Kit to plug in. VFR1200 6P Aux Power Splitter $39.95

6P Aux Connector with Leads for VFR1200

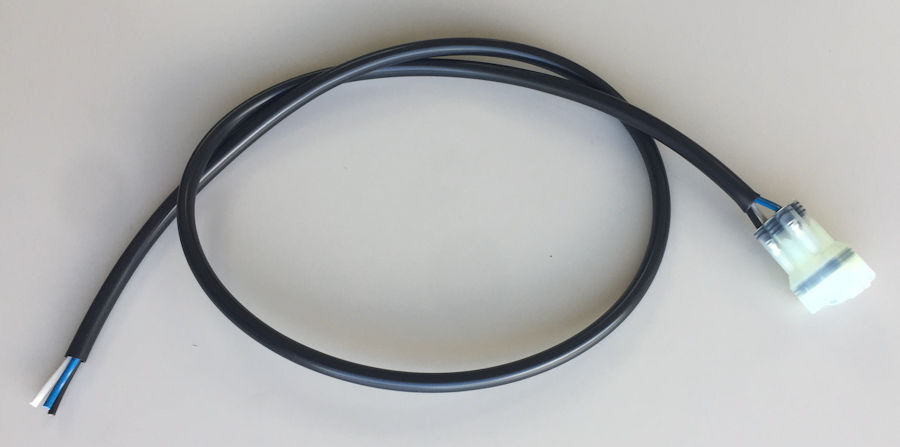

This connector plugs into the stock 6P aux power connector and gives you 36” (92cm) of high temp 18 AWG wire with high temp sheathing. This connector is fused on the bike aux power fuse. Honda only makes an expensive and complex adapter for aux power, this is the DIY simple solution to power your GPS, charge your phone, etc. Using the splitter above you could connect these Leads and and the PC-8 Kit connector to the bike’s 6P connector.

This unit now has 3 wires, 1 switched hot wire(white), 1 HI Beam Switched hot wire(blue), and a ground.
